MILLIMETERWAVE

web site









FOR SALE OR SWAP







     LAST UPDATE :   10/09/2010











The French page is always the last page updated !



Please always have a look on it before enquiry





I am still looking for… :

Manual + schematics on WILTRON 26,5 – 40Ghz  6140D-1   plug-in



And informations on this module ( Impatt amplifier ? ) :

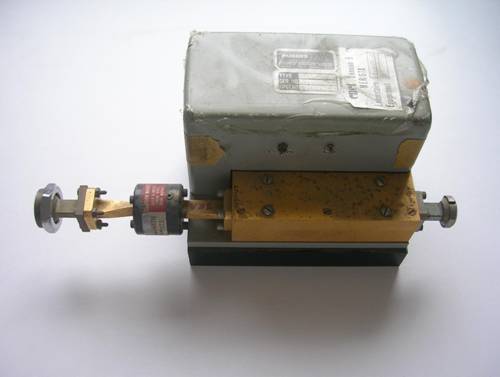

                        HUGHES ELECTRON DYNAMICS DIVISION

ref : 46613H     Input and Output : WR28









As well as :

- Round flanges , for millimeter waveguide , like UG387/U or UG385 , diameter close to 20 mm ( Please not the PROCOM ones ! )

   or pieces of waveguides ( WR15 , WR10 , etc… ) even damaged , with these kind of flanges .

- Alpha Industries Data Book for Millimeter wave Modules ( not the one for microwave discrete components )

- Millimeter wave multiplier with output between 40 and 60 Ghz ,  8 to 17 dBm output level

- Documentation on FERRANTI isolators , 6 and 12 Ghz Bands ( references are like :    JHD XXX-X )

- A small piece of waveguide WR 7 or WR5 with flanges if possible









For sale or swap ( Prices do not include shipping)



Please contact me for shipping costs





WAVEGUIDE

WR229   3,3-4,9Ghz

- Nothing so far…



WR187   3,95-5,85Ghz

- Nothing so far…



WR159  5-7Ghz

- Nothing so far…



WR137  6-8Ghz  ( utilisable sur 6 cm

- Small load THOMSON CMC 541    2 Euros



WR112  7-10Ghz ( utilisable sur 6 et 3 cm )

- Nothing so far…



 WR90  8-12 Ghz



- Isolateur  E&M Laboratories  X59LI  10,8 – 12,4Ghz    3 Euros



WR75  10-14 Ghz

- Nothing so far…





WR 62   12-18 Ghz

-  90° bend on around 5 cm and square flanges - Aluminium –    1 Euro each



WR 42   18-26 Ghz

 - Nothing so far…





MILLIMETERWAVES

Waveguide

WR 28    2 -40 Ghz

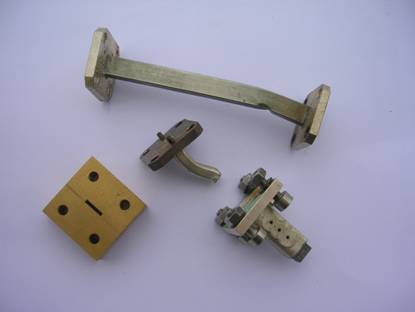

- Set of WR28 parts , flanges ,iris  ( surplus )  2 Euros

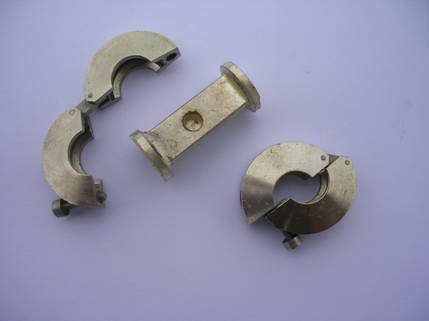

- Small part of WR28 with specific flanges and locking system  ( rare )  surplus  2 Euros



- Ajustable attenuator LMT ( ref 6T13B ) surplus   20 Euros



And also :

- Brass waveguide WR22 ( 33-50 Ghz ) Only for swap with UG387/U or UG385 flanges

- Brass waveguideWR19 ( 40-60 Ghz ) Only for swap with  UG387/U or UG385 flanges







Circulators - Isolators



- Isolator SMA TRAK  20W1501   2 Euros



- Isolators SMA THOMSON TBC35  each :  1 Euro

- Isolator TBC623    each   1 Euro

- Isolator WR75 FERRANTI  17HD105  each  1 Euro

- (2) Isolators SMA 4Ghz ( 3,7 - 4,2 ) TBC 281    each    1 Euro

- (2) Isolators SMA 4Ghz ( 3,7 - 4,2 ) TBC 281  90°   each   1 Euro

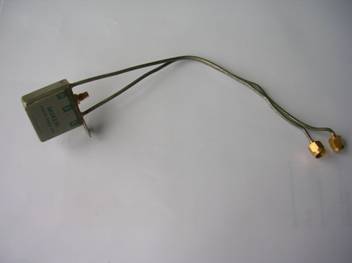

- Small isolator 15,000Ghz WR62    1 Euro

- Circulator Thomson WR75 TBX231   5 Euros





COAXIAL

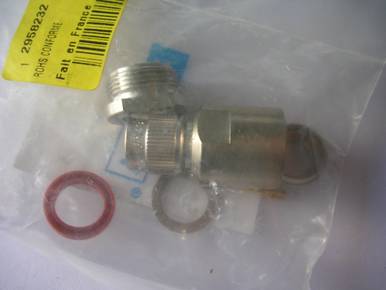

- Male plug TNC RADIALL R143018000 new in bag  2 Euros

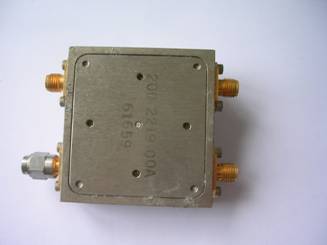

- FOREM Module – coupler 4 ways ref : D15T03P05  810-915 MHz with 3 SMA loads – surplus è   5 Euros



- SMA 50 ohms loads  - surplus -  each    1 Euro





- (2) SMC socket for PCB RADIALL R112 665 - each   1 Euro



- Coupler DCS MA COM 3032-4008-00 - 1805-1880 Mhz - surplus.     5 Euros



- Coaxial cable hand formable SUCOFORM  HUBER & SUHNER 86 PE  new      one meter 1 Euro





- SMA male plug ( crimping )   RADIALL R124 076 320  New     One set of 10   3 Euros      One set of 20   5 Euros

Note :  plug delivered with pin and ferrule



- 3 loads like  F male   One piece 1 Euro

                The corresponding female connector is this one :



- Load N male ref :  TC-50R from a GSM rack   1 Euro

- 5 loads N male origin GSM rack   one piece 1 Euro

-Male plug ( E type ? ) one piece   1 Euro

- Male plug 1.6 / 5.6 ( crimping ) AMPHENOL   75 ohms    5 pieces for 1 Euro





MISCELLANEOUS

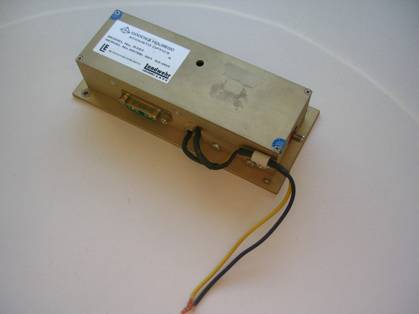

- 320 Mhz source from Landwehr A342-00 SMA output – 2 x  MHW8205 ( 40 à 860 Mhz ) + 2 mixer MCL JMS-2W – Alu case 50 x 150 x 30 mm – surplus    each    20 Euros

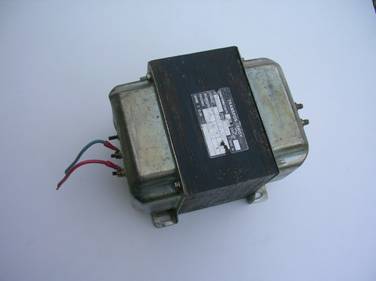

- 230 or 250V to 12V  500VA transformer  surplus  récup , cover a bit damaged    tested OK   HEAVY   !!     20 Euros

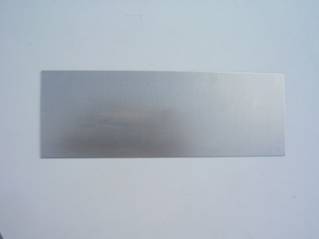

- Aluminium plate 8/10e size 224 mm x 77,6 mm   ( perfect for microwave case cover )   2  for  1 Euro

-  HP switch to repair an HP eqpt  ( from an old HP rig )    2 Euros



- Module SIEMENS from surplus to get 3 SMA gold sockets 4 holes , 4 SMC gold sockets 4 holes and 18 caps ATC 330    5 euros

          Another view with module open  :

- OCXO CTS KNIGHTS 5 Mhz 970-2066-1   installed on a PCB with a CC converter    10 Euros



- OCXO 13 Mhz NDK END 3093B   5 Euros

- OCXO TEL QUARZ GROUP Z43-A4-01  13 Mhz    5 Euros

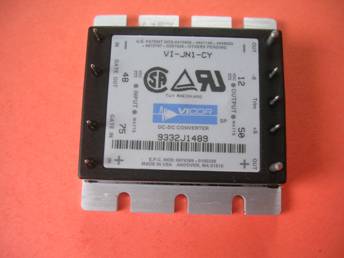

- 48V DC to 12V DC converter 50W  VICOR VI-JN1-CY   new   each  : 5 Euros

     See : http://psearch.vicorpower.com/search/product_specs/?part_number=VI-JN1-CY



- 48V DC to 5V DC converter 150W  VICOR VI-2N0-CY   new   each : 5 Euros

   See :   http://www.vicorpower.com/cms/home/products/brick/dc-dc_converters

- Large micromètre ( coming from a slotted waveguide on 40 Ghz )    5 Euros

Moore & Wright Diameter around 67 mm . Length around 300 mm



COMPONENTS

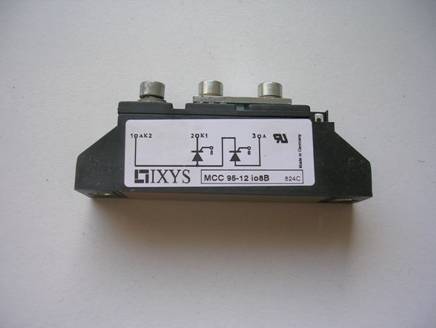

- (2) Thyristor module IXYS MCC 95-12 io8B  1200V 180 A   surplus    each  2 Euros

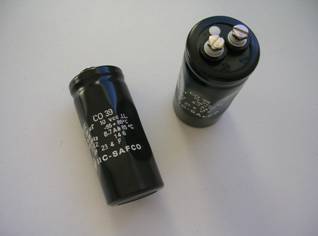

- Electrolytic capacitor SIC SAFCO new old stock  22 000µF 10Vcc with screws  10 units    4 Euros

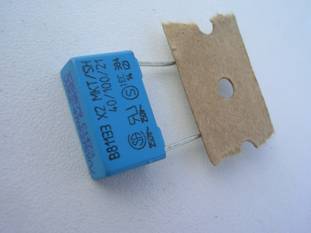

- Plastic capacitor  MKT B81133    47nF  275V  new   10 units   1 Euro









- MOSFETS  FAIRCHILD  FQP70N10  100V  57A   N  Channel  New   10 Units    2 Euros





- HEXFETS IRF540N  International Rectifier  33A 100V   N Channel      New   10 Units  2 Euros





- Switchs  ATEM   ref 5667   new    each  2 Euros



Note : photo with washerand nut but parts supplied with the switch

- GaAsFet NEC NE800495-6   33,2 dBm à 6Ghz    with datas     30 Euros



- Thermopile  MELEXIS MLX90247    25 Euros

- Negativ regulator -12V 1,5A   L7912CV on a small heat sink   10 units :   3 Euros

- IC 7705 ST SO8   10 units    1 Euro

- TL 431 C   TO92     10 units    2 Euros

- Transistors TIP31C   10 units    2 Euros

- Diodes BZW50-82B VU  10 units    2 Euros

- Transistors Darlington CMS DPAK PNP 100V 2A  MJD117 ( SMD version of the TIP117 )   10 units   1 Euro

- 28 pins support   10 units    1 Euro

- Electrolytic capacitors radials low profil 150 µF 100V Nichicon   10 units   3 Euros

- Electrolytic capacitors radials low profil 22 µF 250V Rubycon     10 units    3 Euros

- Electrolytic capacitors axials 1000 µF 63V Sic Safco   10 units    3 Euros

- Power resistor radial Firstohm 10 ohms 5W    10 units    2 Euros

- Hybrids CATV  ( removed from units. )  : 1xNEC MC5822, 1xTRW 234490-C, 1xMOTOROLA 234491-C, 1xMOTOROLA MHW592, 2xMHW5185   Offer ?

- Power operational amplifier APEX PA02A on heat sink – removed from an eqpt -   each    1 Euro







Spare parts ( on old equipments ) for :

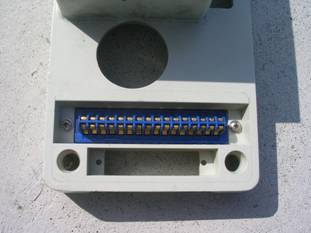

- Plastic front face for 8699B plug in ( for the connector ? )  2 Euros

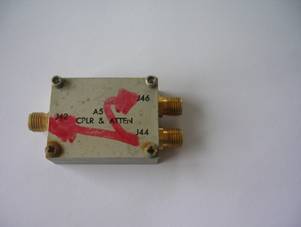

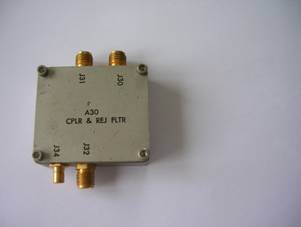

- TEKTRONIX modules : A5 CPLR & ATTEN , A30 CPLR & REJ FLTR , A6 TW DMPR    Offer ?

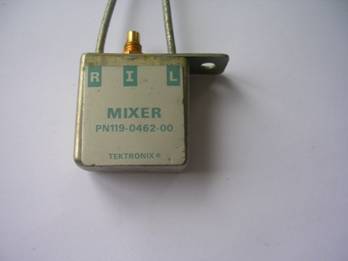

- TEKTRONIX Mixer  119-0462-00    Offer ?

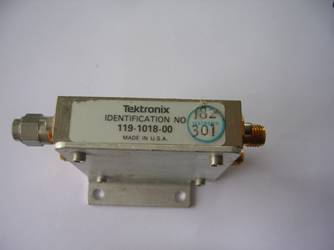

- TEKTRONIX Module ( Analyzer 492 ? )  119-1018-00  with small SMA load     Offer ?







Data Books :

Nothing so far…

You are looking for a specific microwave item , just ask , who knows ?



My adress :

Eric Moutet F1GHB

16 Hent Castel Pic

22300 CAOUENNEC LANVEZEAC

Tel : ++ 33 2 96 47 22 91

f1ghb@cegetel.net
